2GL Drilling And Cutting Integrated Machine - SolidWorks - Free Download

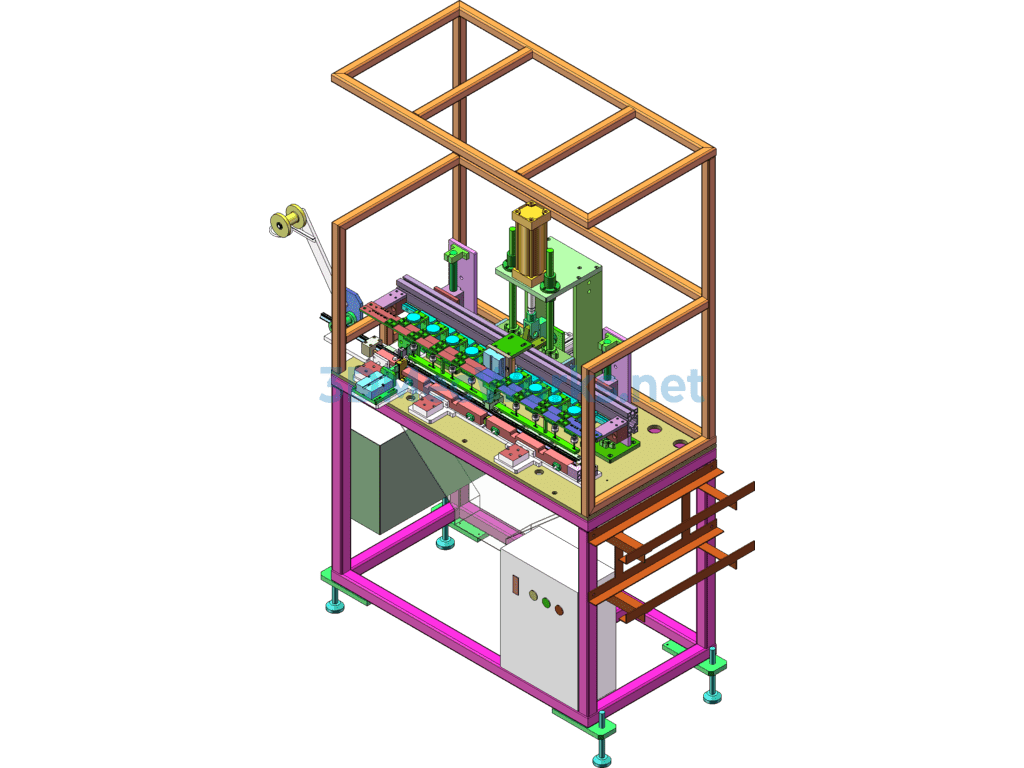

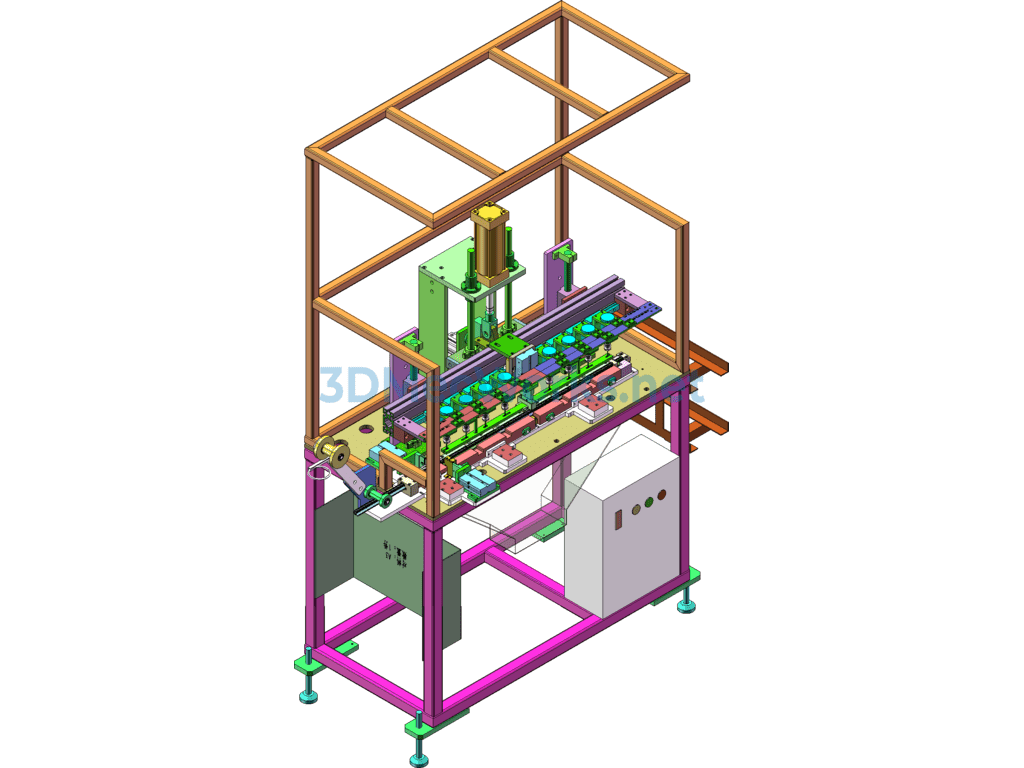

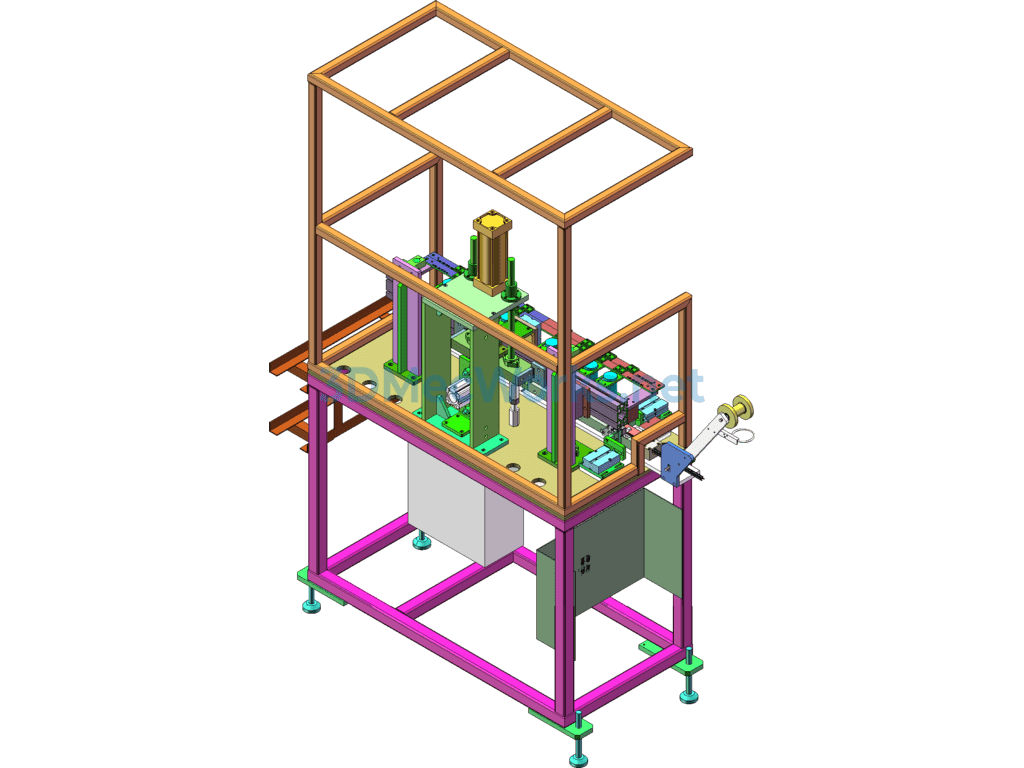

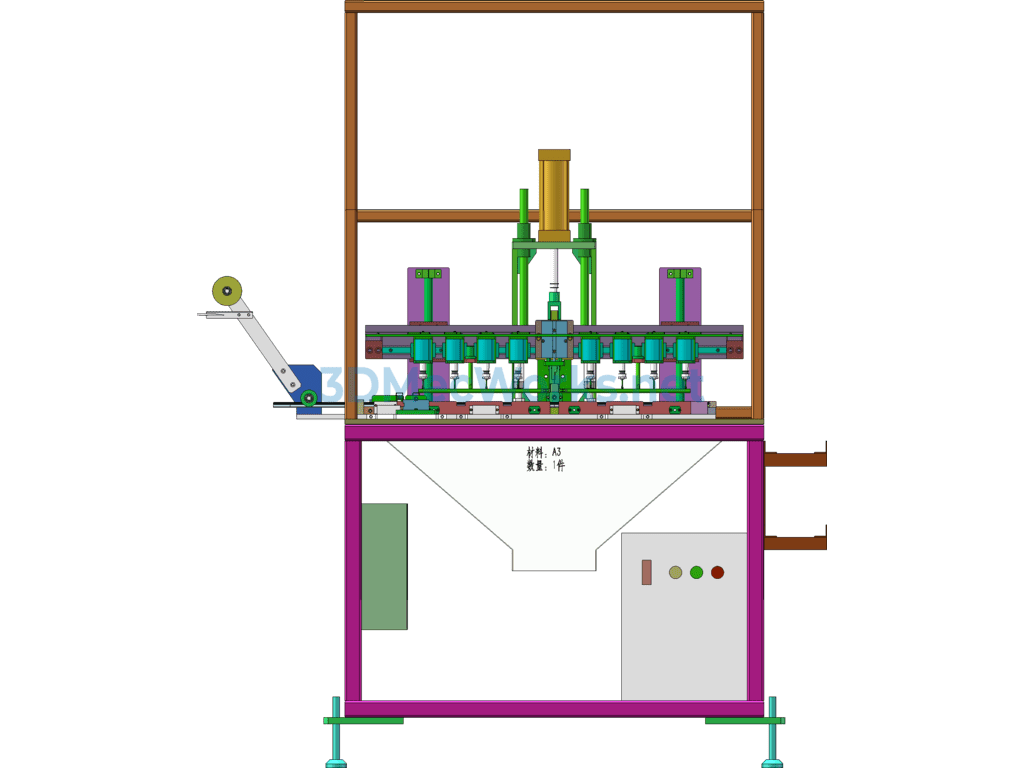

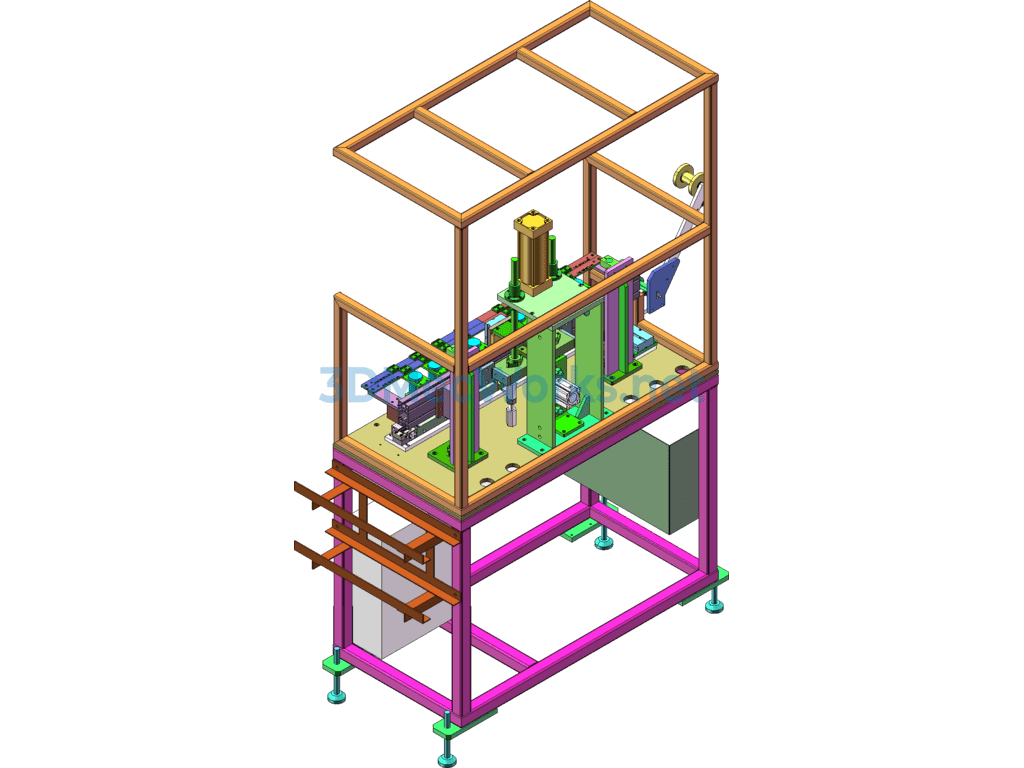

This is a 3D model of a punching and cutting integrated machine. The equipment is used for secondary processing of automotive seals, including punching and cutting. The composition of the equipment: punching tooling, cutting structure, product fixture, and electrical control system. The products are distinguished by left and right symmetrical parts, and one work cycle of the equipment can simultaneously complete the processing of left and right parts. The drawing format is SolidWorks2018. Welcome to download.
