20,000 Airflow Dual-Stage Hybrid Cyclone Scrubbing Tower - SolidWorks AutoCAD.Mechanical - Free Download

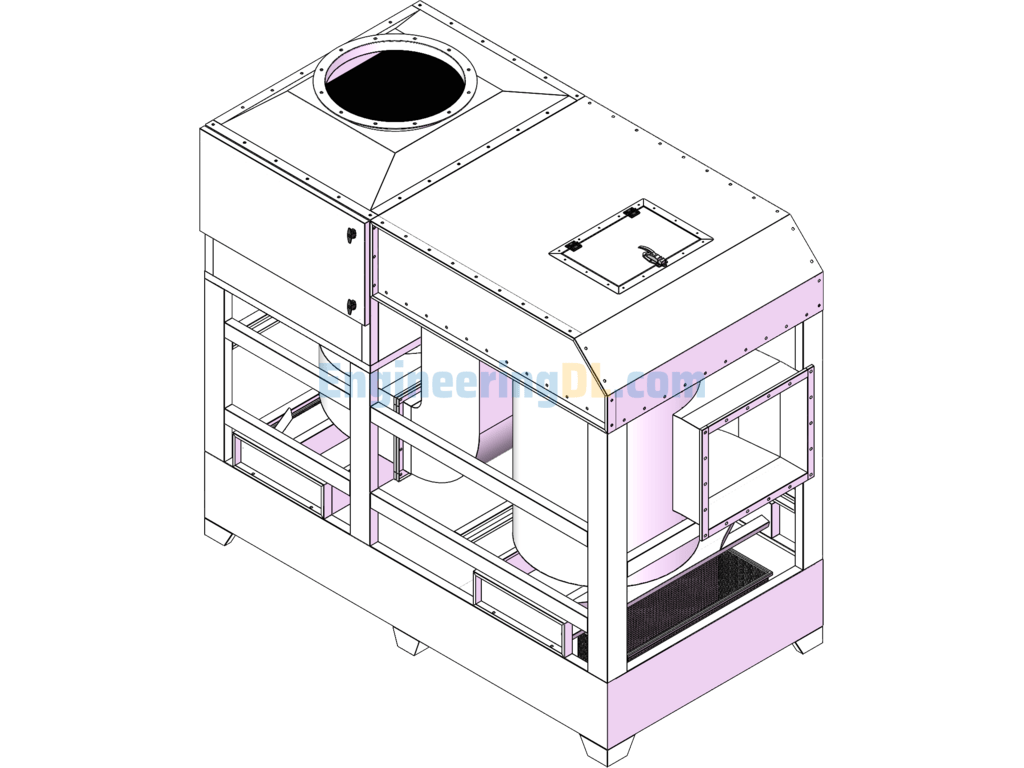

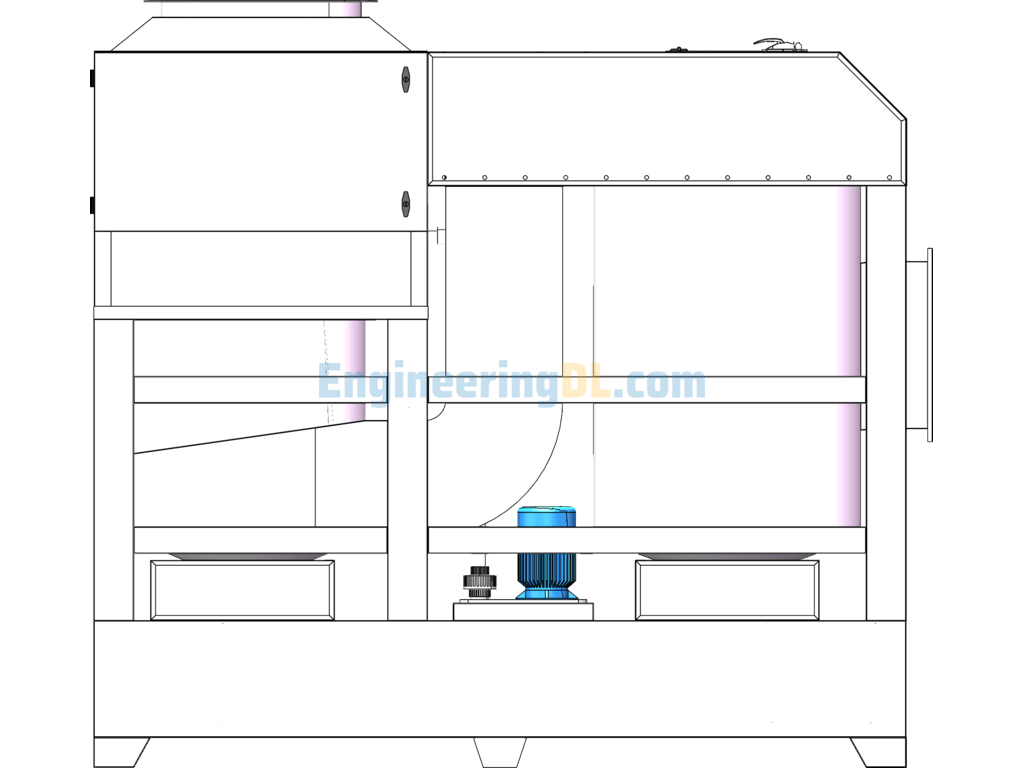

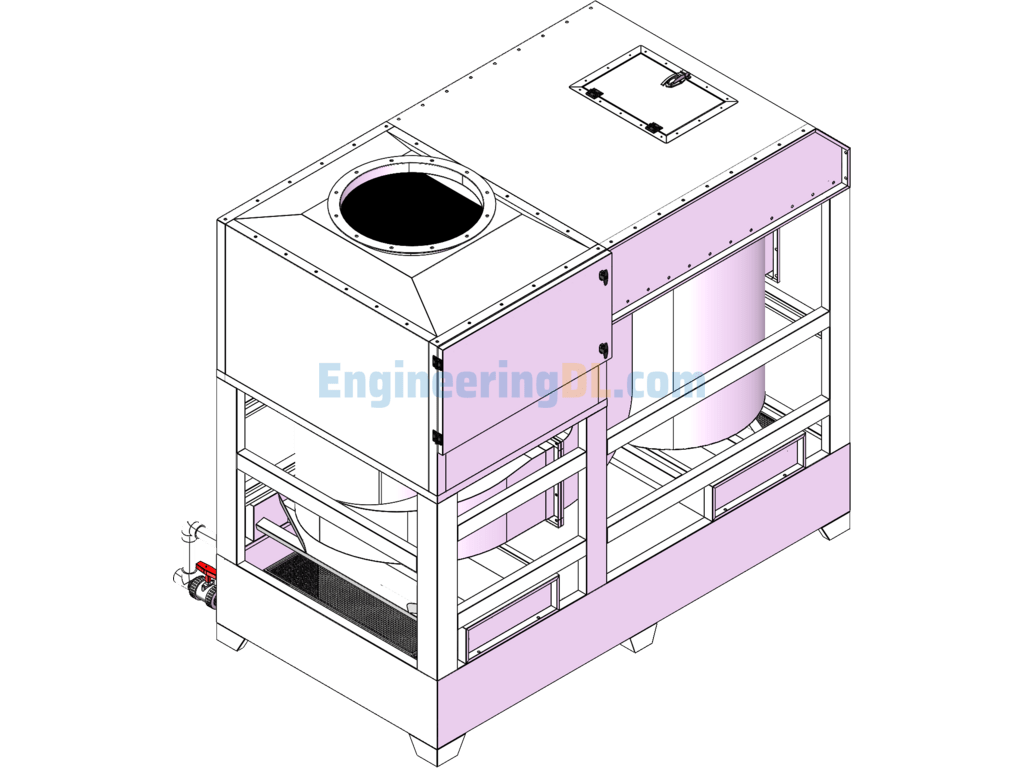

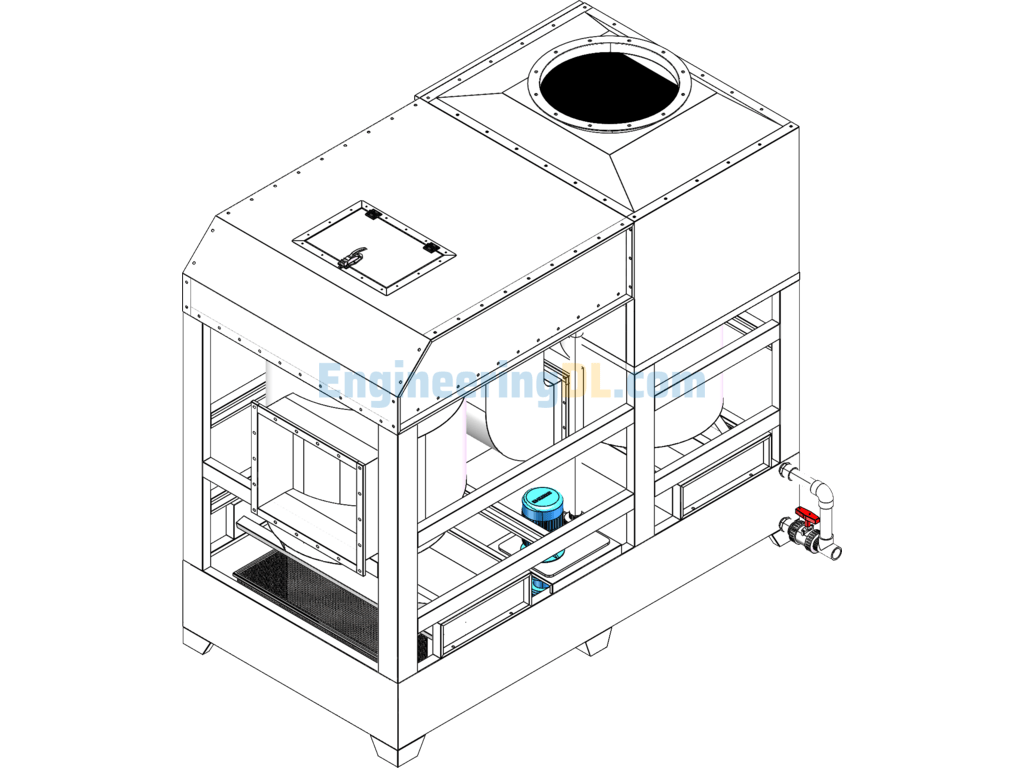

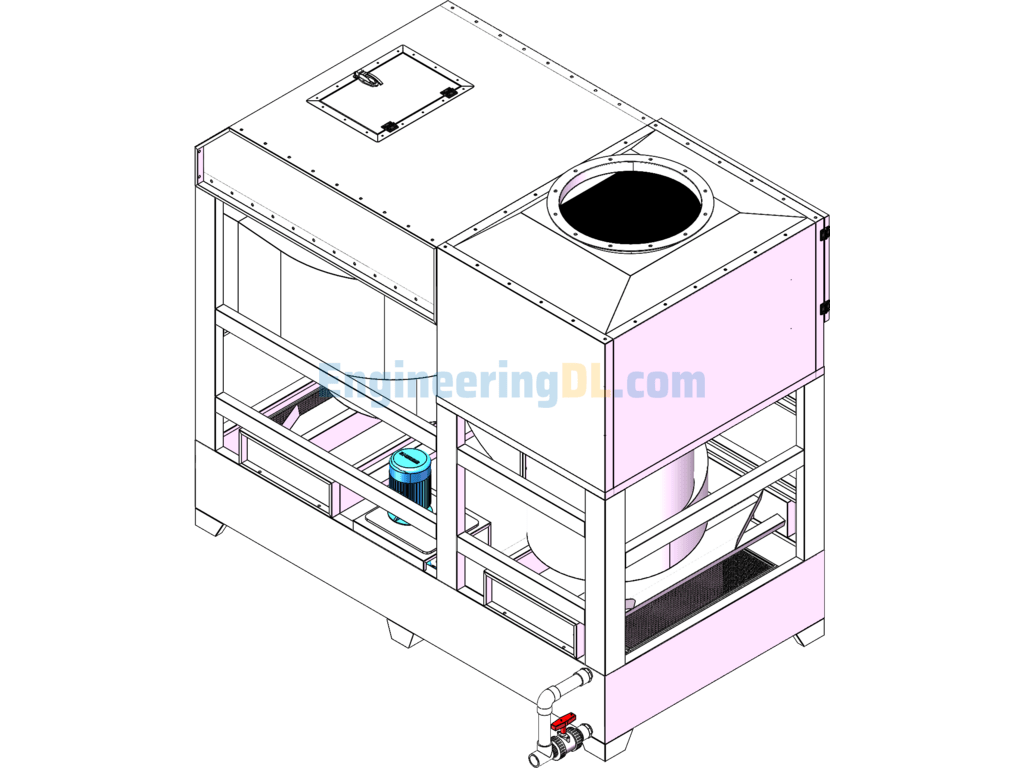

The cyclone hybrid spray tower is composed of a bottom water tank, a filter tank, dual cyclone barrels, a cyclone layer, a spray layer, and a demisting layer. Exhaust gases enter the cyclone hybrid spray tower through the air duct. After passing through the cyclone plate, a high-speed rotating airflow is formed in the gas-liquid channel, fully mixing the particulates with the spray mist to achieve purification. The drawings include detailed 3D diagrams and cutting lists.
