1.3M Wide Dry Wire Drawing Machine (Double Sand Belt) - SolidWorks - Free Download

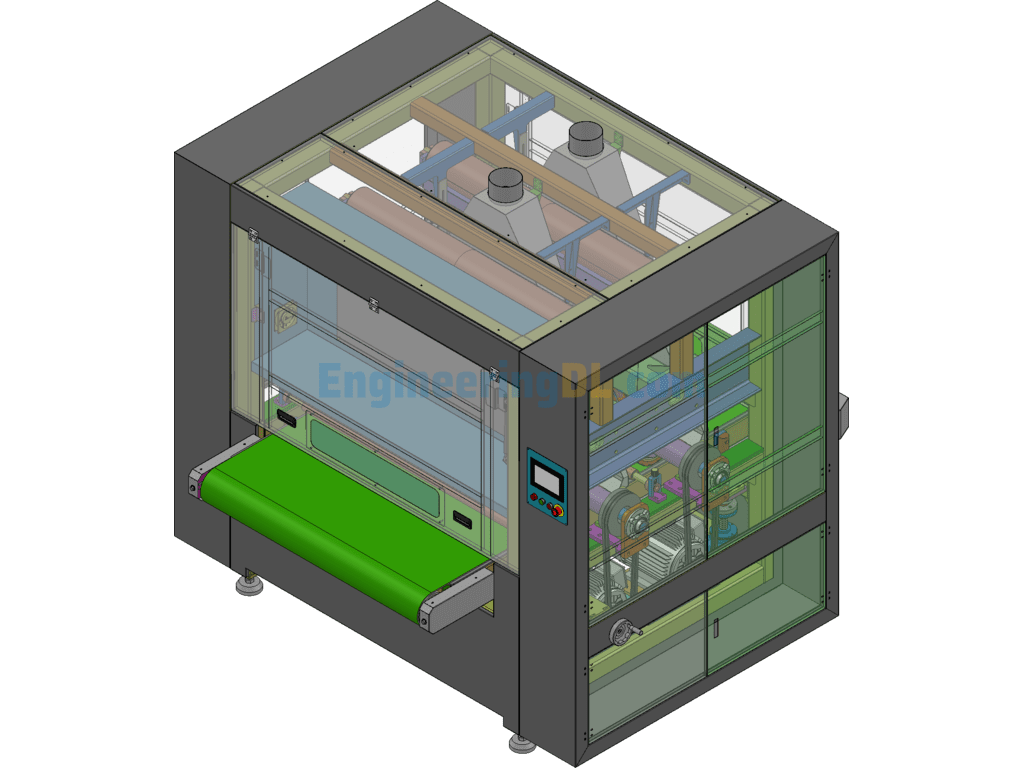

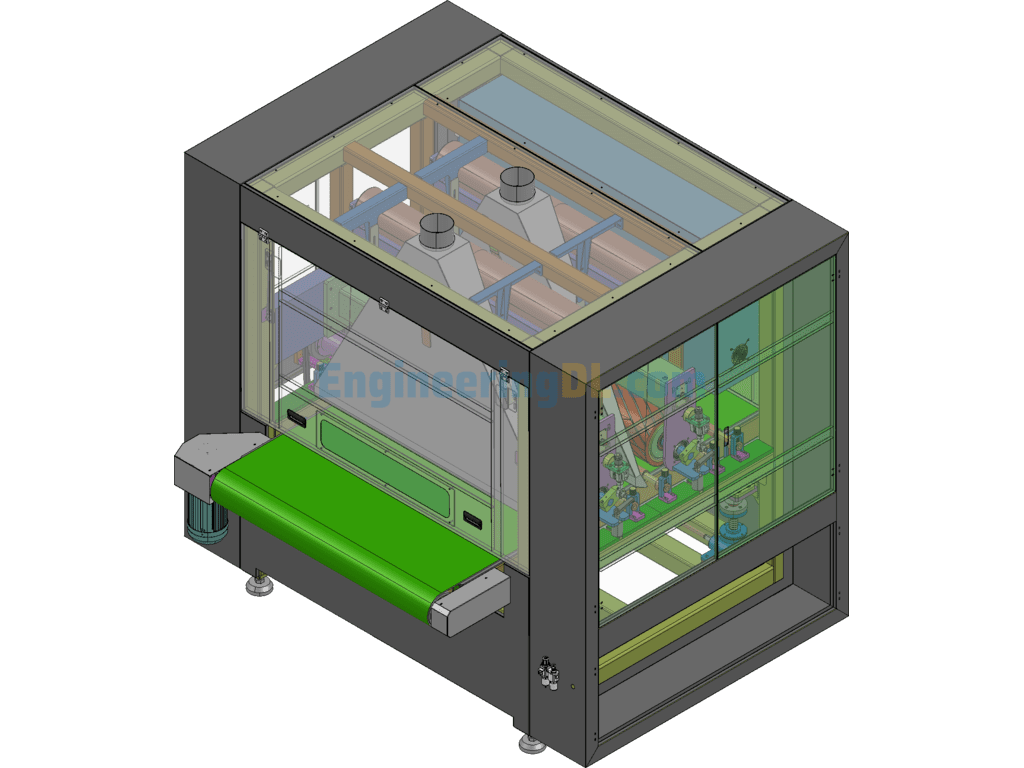

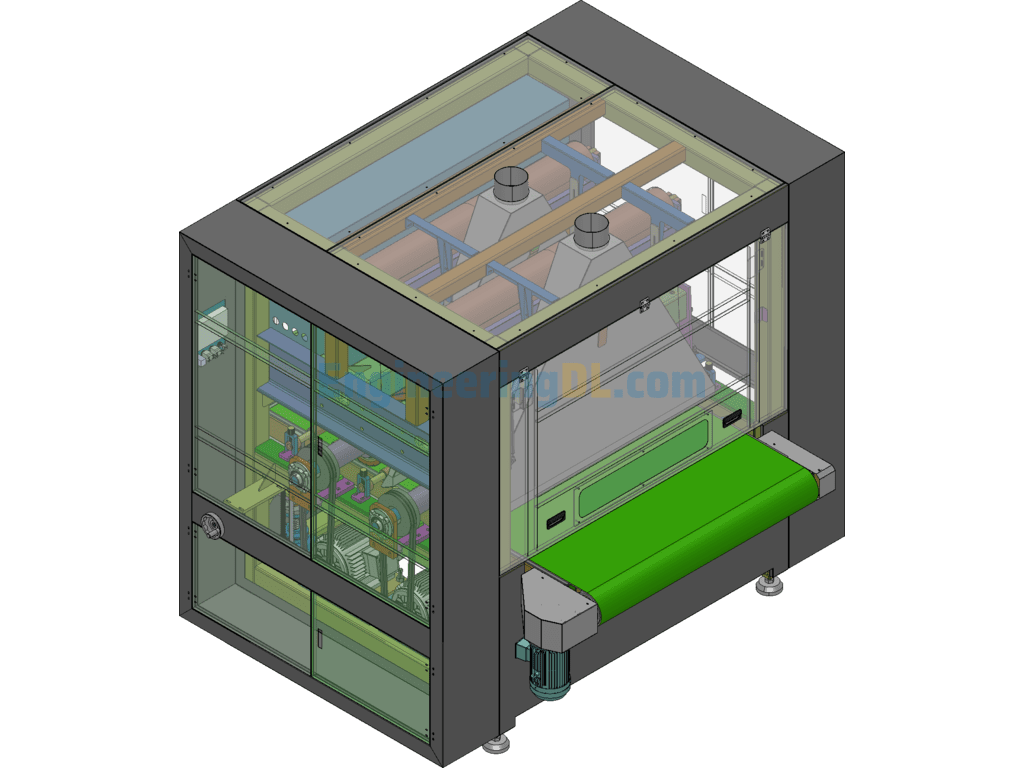

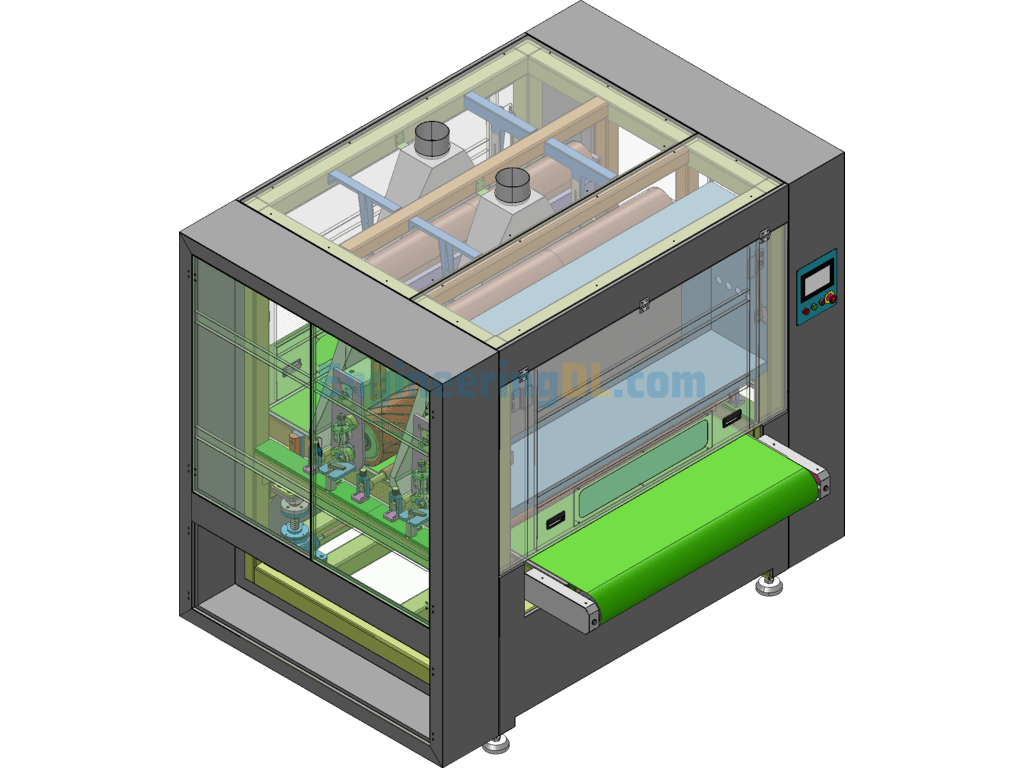

1.3M Wide Dry Drawing Machine: Mainly used for metal surface treatment, using two-stage drawing, the first stage for rough lines and the second stage for fine lines. The conveyor worktable can be lifted and lowered, capable of processing workpieces with a thickness within 100mm. The sanding belt has an automatic correction function and an overload function on the pressure roller, which can effectively protect the sanding belt. All components in the drawings have characteristic parameters that can be modified, and all assembly constraints are present. I drew it little by little, hoping it can help you. The drawings have extremely high reference value.
