015B Lip Edge Punching Tooling - SolidWorks - Free Download

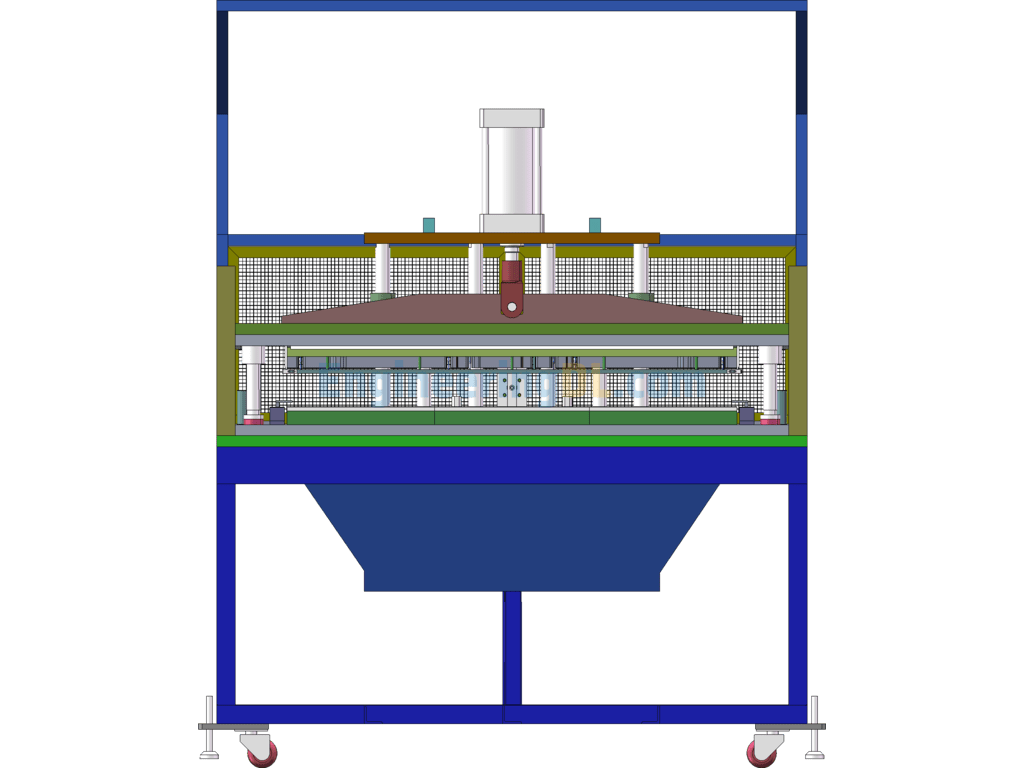

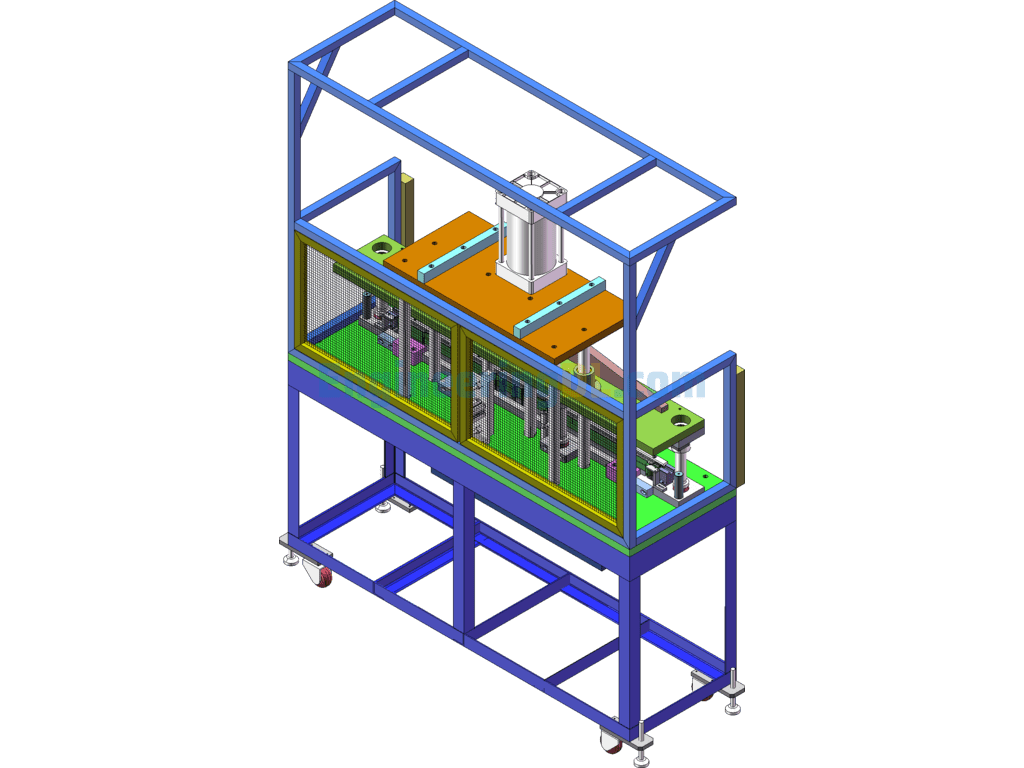

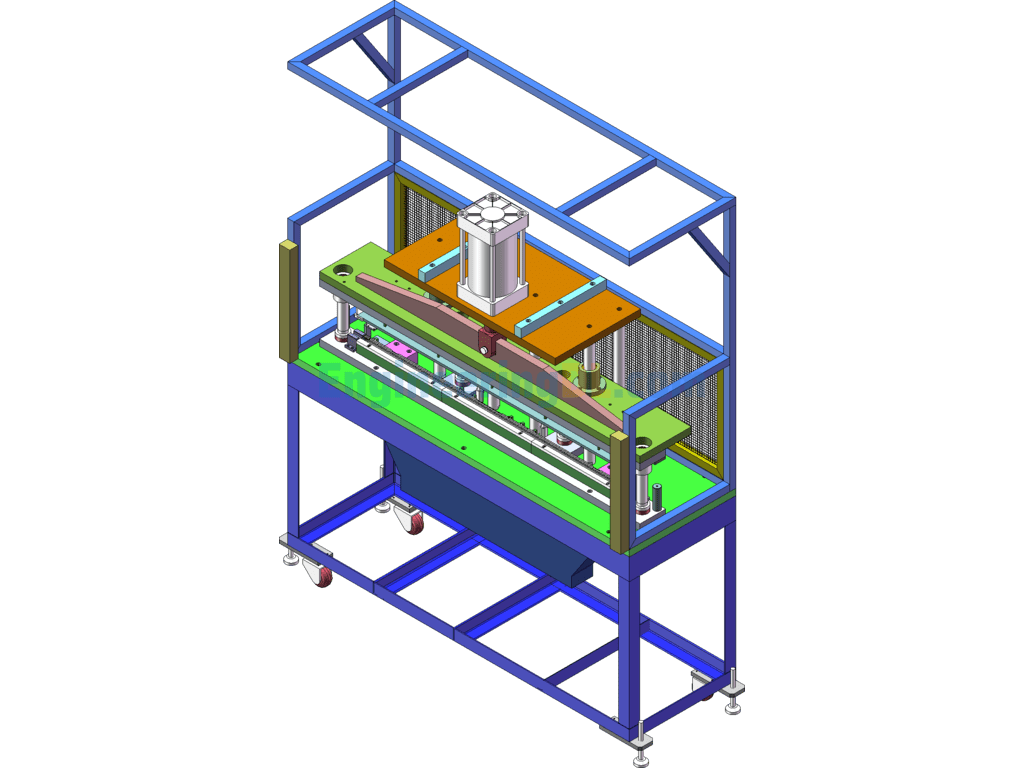

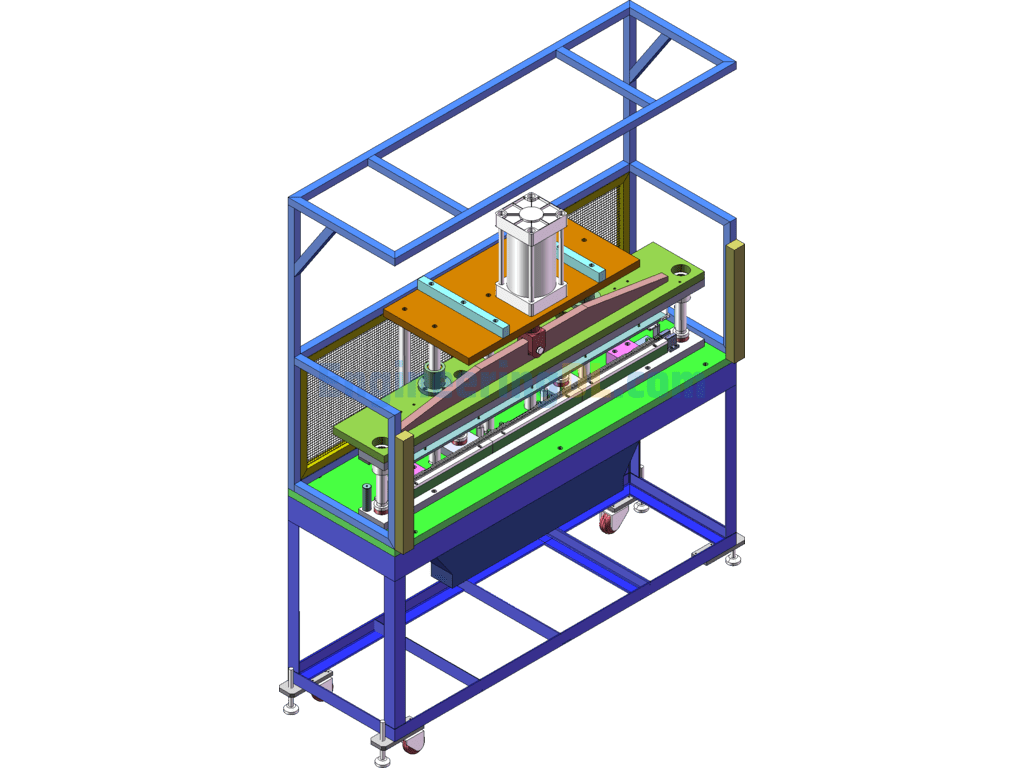

Three-dimensional model diagram of automobile sealing strip lip edge punching machine, the punching product is an engine hood sealing strip, the product has many clearance notches, and the tooling adopts a die-cut method for punching, with reasonable design of the upper and lower dies. Working principle of the equipment: After the product is placed and fixed, and the product is sensed to be in position, double-hand activation completes the punching of the product. The drawing format is solidworks2018, welcome everyone to download.
