Φ2000×5700 Spray Scrubbing Tower - SolidWorks - Free Download

Φ2000×5700 Scrubber Tower Equipment Parameters_x000D_
1. Equipment Dimensions: 2000×5700;_x000D_
2. Airflow Volume: 15000m³ /h;_x000D_
3. Empty Tower Wind Speed: 1.5m/s;_x000D_
4. Inlet and Outlet Diameter: 600;_x000D_
5. Packing: 50×1.5 Pall Rings, 5m³, 380kg;_x000D_
6. Water Tank Volume: 4.5m³;_x000D_
5. Equipment Working Weight: 8t_x000D_

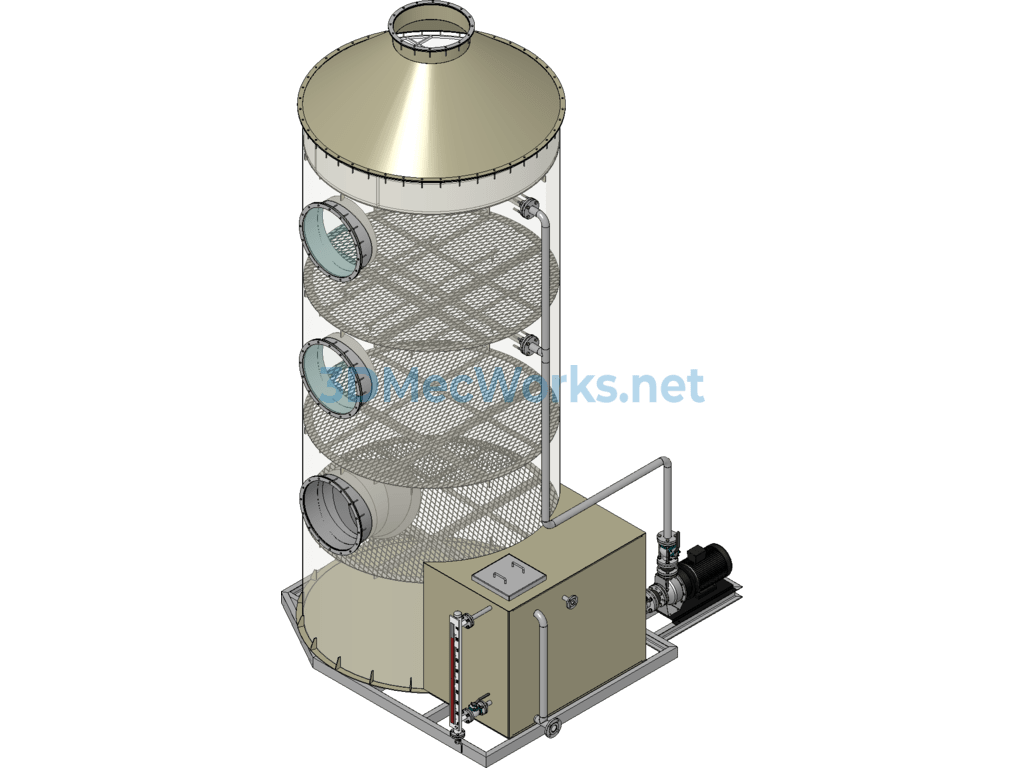

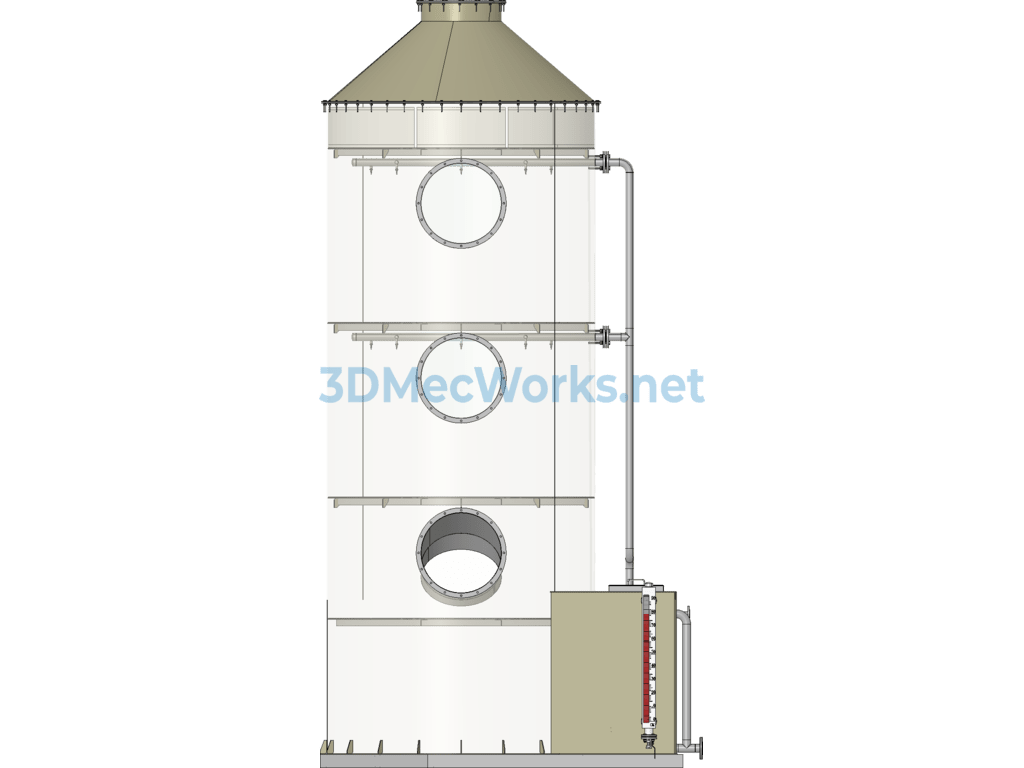

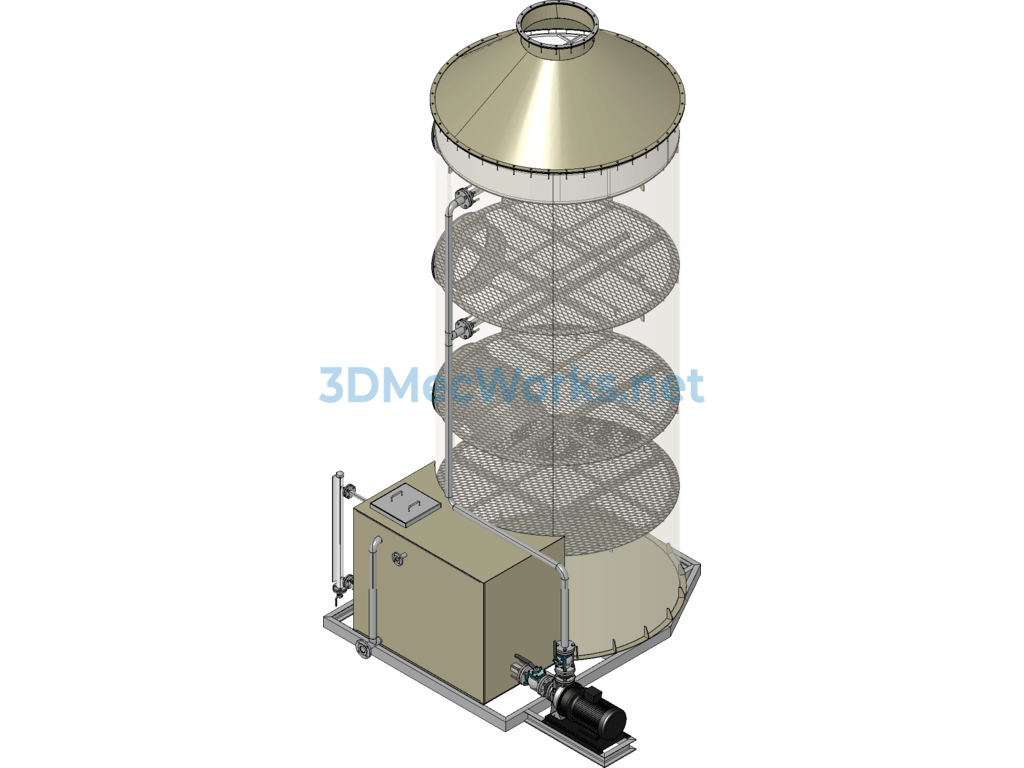

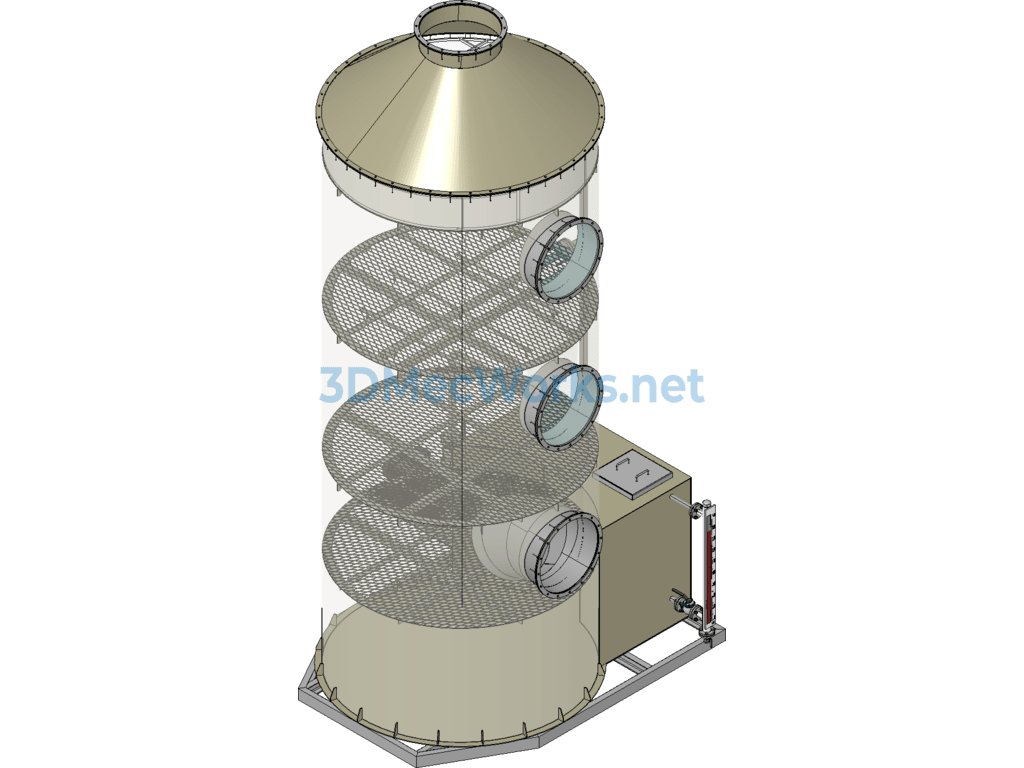

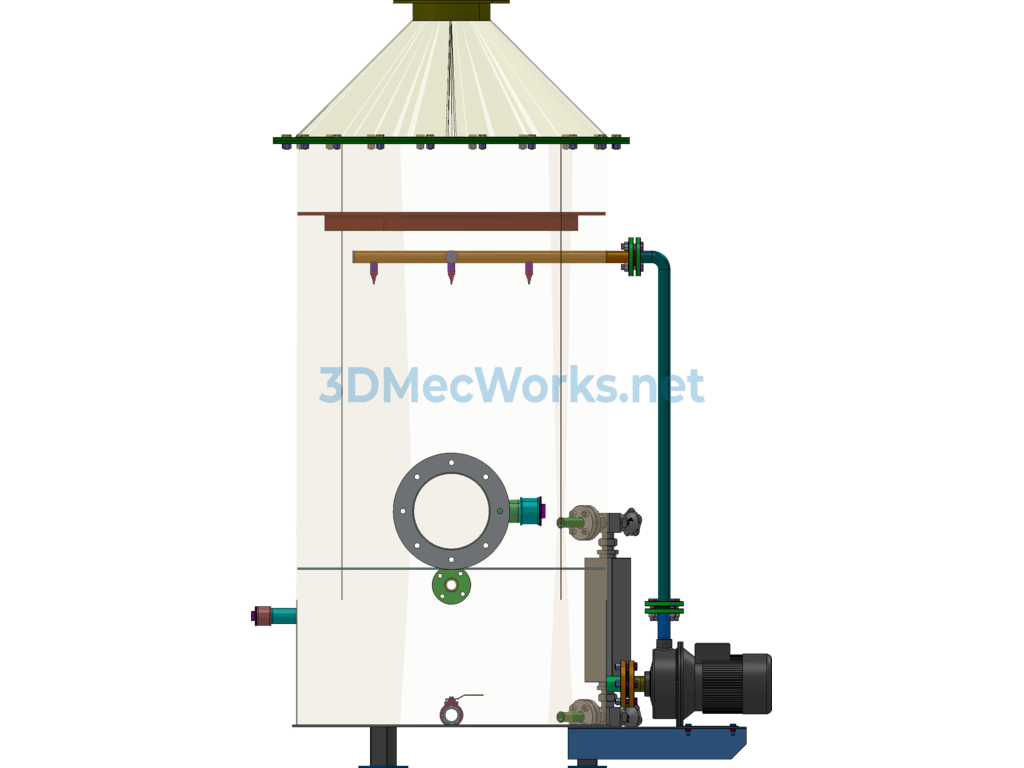

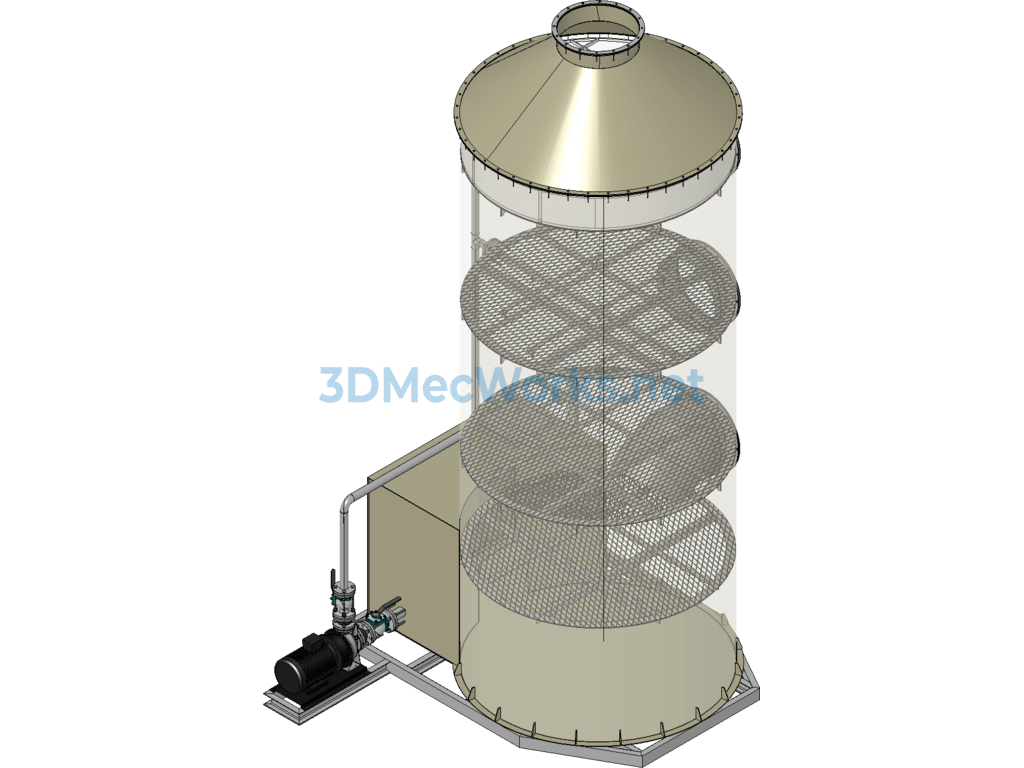

Φ2000×5700 Scrubber Tower Design Model, the scrubber tower is a new type of gas purification treatment equipment. It is improved based on the floating packing layer gas purifier and is widely used in the pre-treatment of industrial waste gas purification, dust removal, etc., with very good purification effects.
